gRAM V2.1
GRAM R&D endless filament winding end effector for Research and Education.
MEchanical Engineering
Circular smart material engineering
Offering the opportunity to participate in regional, national and European R&D PROJECT FUNDING calls.
FEA & Structural Calculation
Advance Robotic Programing
gram® v2.1 is oriented to help universities and research centers in their pursue of new smart materials & additive manufacture
GRAM is interdisciplinary equipment combining innovation in
MEchanical Engineering
During design phase, we options, always reaching the project goals.
-
Dig into the precise and detail world of design of parts
-
Detail Design of how parts move and behave.
-
Design of how multiple parts interact and connect with each other.
FEA & structural Calculation
-
State of the art high recognized softwares.
-
Description text goes here
-
Description text goes here
Push the limits of finite element analysis and structural calculation to predict with high accuracy your components mechanical response and be one step ahead by predicting and understanding their material behaviour.

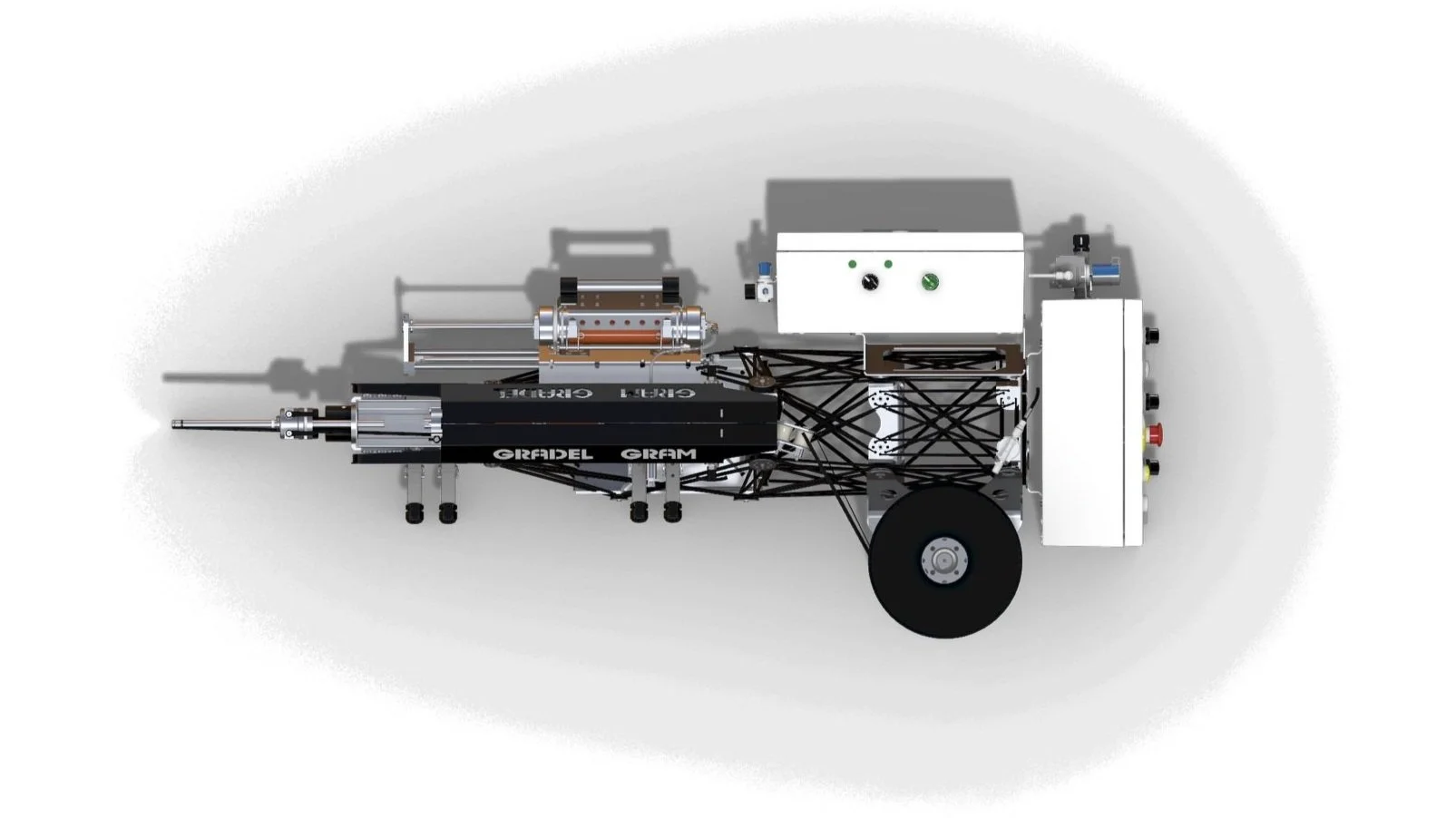

SPECS
Dimensions & Weight:
1650 x 460 x 620 mm.
Unloaded weight: 64 kg.
fiber Sizing:
All type from 6k up to 50k or 4800 tex.
Max bobbin diameter:
standard core of Ø 76mm
External Ø 250 / height 350 mm.
1 Fibre bobbin load capacity.
Resin System:
Mono-component resin system , 2 or 3 component resins epoxy and/or (polyester),
Vitrimer base resins and other bio epoxy resin.
Flame retardant resin.
Controlled temperature.
Resin tank volume: 0,5L.
Inlet and Outlet nozzle for controlled impregnation.
Parameters:
Integrated control box.
Range of temperature is from room temperature up to 80°C
Pressure capacity is 0 to 2 bar.
Make it lighter with gram
calibrated fibres materials
-
Carbon
has several advantages including high stiffness, high tensile strength, low weight, high chemical resistance, high temperature tolerance and low thermal expansion.
-
basalt
Natural mineral sourced, has benefits such as good tensile strength, non-toxic, resistant to UV, impact resistant, high temperature tolerance (-260 - 700 °C) and more economic than carbon, Kevlar and glass fibres.
-
Flax
Plant based locally sourced fibre, is a sustainable alternative in composites. Is biodegradable, cost with has good mechanical properties, high specific stiffness, easy processability, and low density.
-
Glass
Glass made has comparable mechanical properties to other fibres such as polymers and carbon fibre.
-
New Fibre
We can also adapt and calibrate our process and equipment to any fibre you are currently using or you are interested in. Reach out to us for more information.
Ready for prototyping
or for serial production Of
none commercial parts

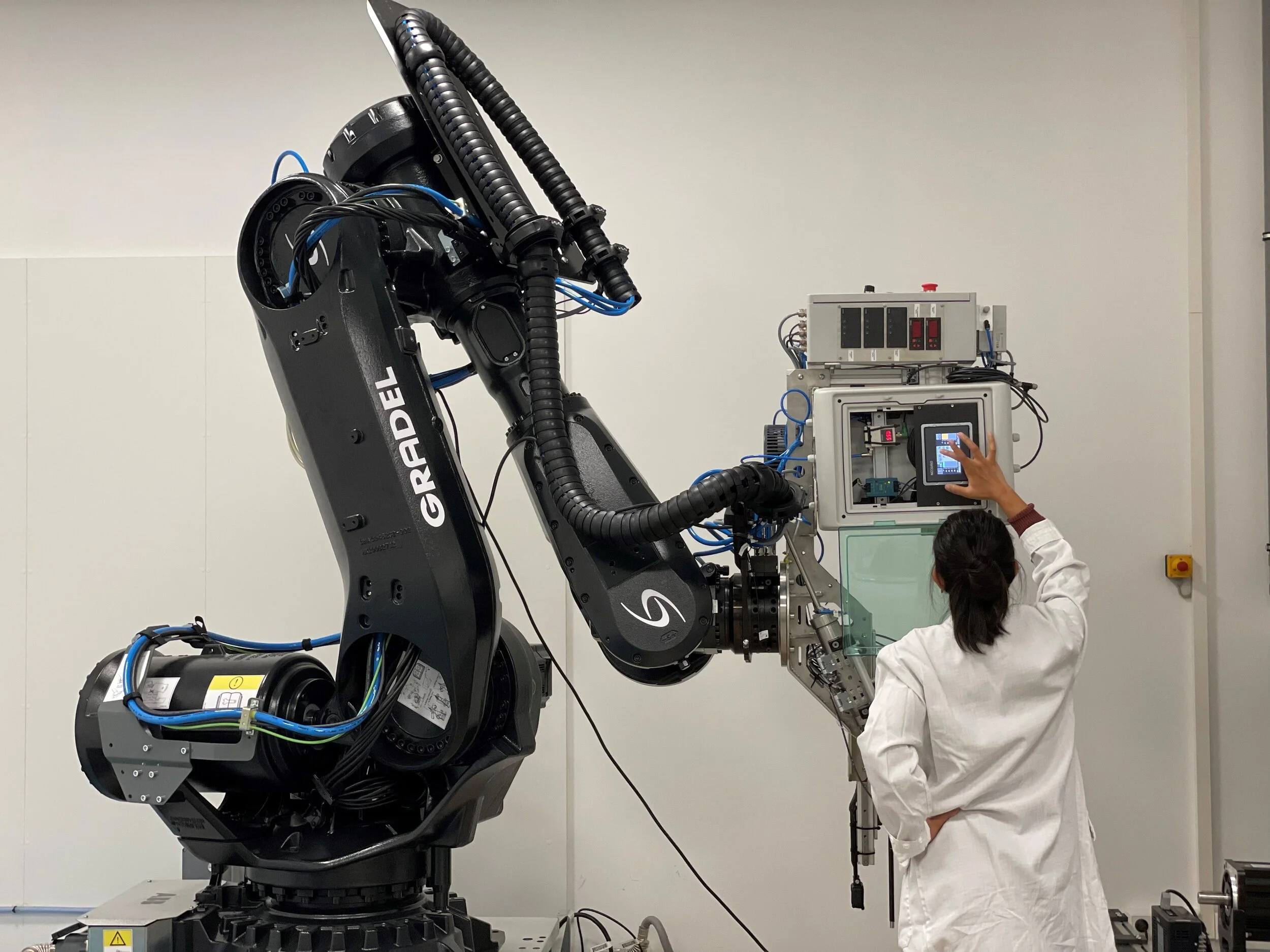

Winding with our 6 axis robotic head with an additional external axis to facilitate and optimizing the winding of this serial production.
Robot SPECS & caracteristics
6 axis industrial robot
Recommended payload:
ABB 200kg. (others on request)
Training Session on request:
Determination of the GRAM material card.
Definition of GRAM structure.
Definition of GRAM winding syntax.
Programming of Robot (ABB).
Winding Speed
25 to 200 mm/s
Supply:
Pneumatic Power:
6 Bar ( low consumption).Power supply:
240V / 50 Hz / 32A / 8 kW.
Recommended upgrades
-
robotic rail
4 meter X-rail or supplementary axis on request
-
Work Table
Measurement precision table,
-
Safety Fence
Development of automatize safety measures to guaranty customize and optimize work area.
-
External axis
Supplementary axis, pan / tils axis
-
Collaborative Robots
Multimove for collaboration with multiple robots
For information on this equipment and our services contact our sales department.
